It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

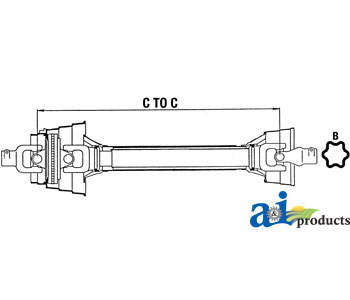

C to C 1210 mm - 48"
Implement 1 3/4" - 20
Tractor 1 3/8" - 6
mega-cross: (1 to 1 of 1)
Stocked As: A-WC584813A
item components: (1 to 2 of 2)
Item Number Description Qty
A-00760667 Machine Half 1
A-00760668 Tractor CV Half 1
sections and models:
Driveline (by application) > CV Driveline Assembly
Alamo Industrial ROTARY CUTTER: AG15IV (SN 15-02106>)
Alamo Industrial ROTARY CUTTER: AG20IV (SN AG20-01060>)
Alamo Industrial ROTARY CUTTER: A141V
Alamo Industrial ROTARY CUTTER: A201V
Alamo Industrial ROTARY CUTTER: A415 (SN A415-01001 Thru A415-14000)
Rhino ROTARY CUTTER: FL10M (SN 10001>)
Rhino ROTARY CUTTER: FL14 (SN 10341-10699)
Rhino ROTARY CUTTER: FL15M (SN 10001>)
Rhino ROTARY CUTTER: FL20 (SN 10341-10699)
Rhino ROTARY CUTTER: FM10 (SN 10035-10200)
Rhino ROTARY CUTTER: FM15 (SN 10035-10200)
Rhino ROTARY CUTTER: FS20 (SN 01001-10217)
Rhino ROTARY CUTTER: SE10-4A (SN 17108>)
Rhino ROTARY CUTTER: SE15-4 (SN 10001-14811)
Rhino ROTARY CUTTER: SE15-4A (SN 17108>)
Rhino ROTARY CUTTER: SR10 (SN 10001-11270)
Rhino ROTARY CUTTER: SR10M (SN 10001-18858)
Rhino ROTARY CUTTER: SR14 (SN 10001-11410)
Rhino ROTARY CUTTER: SR15 (SN 10001-11270)
Rhino ROTARY CUTTER: SR15M (SN 10001-18858)
Rhino ROTARY CUTTER: SR20 (SN 10001-11410)
